Engine Specifications

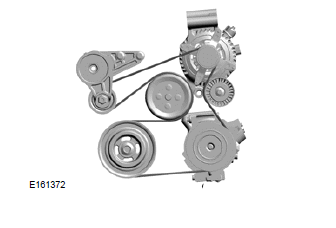

Drivebelt Routing
1.0L EcoBoost
1.6L Duratec-16V Ti-VCT
1.6L EcoBoost
Motorcraft Parts
1 Failure to use the correct air filter element may result in severe engine
damage. Your
warranty may be void for any damage to the engine if the correct air filter
element is not
used.
2 Only use the specified replacement oil filter. The use of a non-specified oil
filter can
result in engine damage. See Scheduled Maintenance.
3 For spark plug replacement, see an authorized dealer. Replace the spark plugs
at the
appropriate intervals.
Note: Replace the spark plugs with ones that meet Ford material and design specifications for your vehicle, such as Motorcraft or equivalent replacement parts. Your warranty may be void for any damage to the engine if the correct spark plugs are not used.
Do not use American Petroleum Institute S category oils labeled as SN, SM, SL or a lower category unless the label also displays the American Petroleum Institute certification mark. These oils do not meet all of the requirements of your vehicle's engine and emissions system.
Vehicle Identification Number

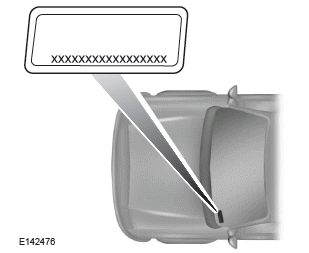

The vehicle identification number is located on the left-hand side of the instrument panel.
Please note that in the graphic, XXXX is representative of your vehicle identification number.

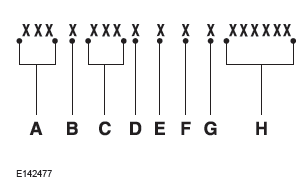

The Vehicle Identification Number contains the following information:

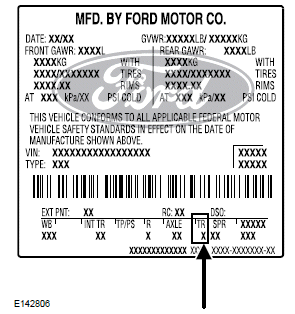

Vehicle Certification Label
The National Highway Traffic Safety Administration Regulations require that a Safety Compliance Certification Label be affixed to a vehicle and prescribe where the Safety Compliance Certification Label may be located. The Safety Compliance Certification Label shall be affixed to either the door hinge pillar, the door latch post, or the edge of the door near the door latch, next to the driver's seating position.
Transmission Code Designation

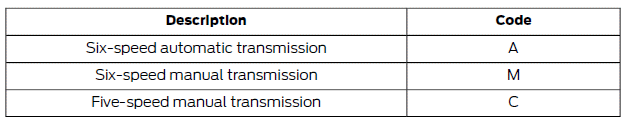

The transmission code is on the Safety Compliance Certification Label. The following table shows the transmission code along with the transmission description.
