Ford Fiesta: Information Displays

Ford Fiesta 2009-2019 Owners Manual

General Information

WARNING

Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible.

Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.

Note: The information display will remain on for several minutes after you switch the ignition off.

Device List

The icon changes to show the current function in use.

CD

Radio

Auxiliary input

Information Display Controls

Ford Fiesta. General Information

Various systems on your vehicle can be controlled using the information display controls on your audio unit. Corresponding information is displayed in the information display.

To use the controls:

  • Press the up or down arrow button to scroll through and highlight the options within a menu.
  • Press the right arrow button to enter a submenu.
  • Press the left arrow button to exit a submenu.
  • Press and hold the left arrow button at any time to return to the main menu display.
  • Press the OK button to choose and confirm settings or messages.

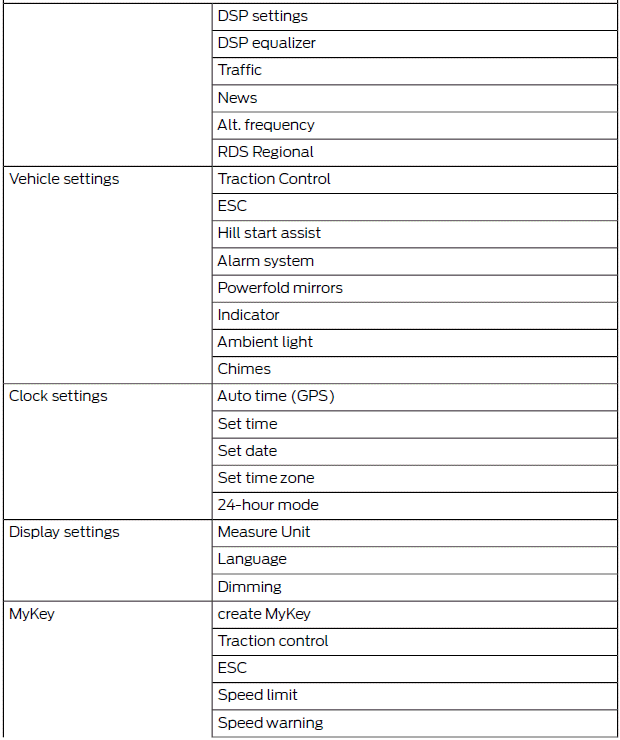

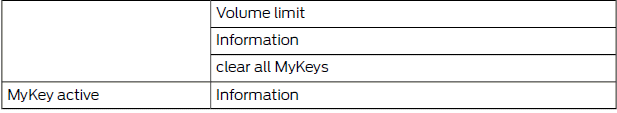

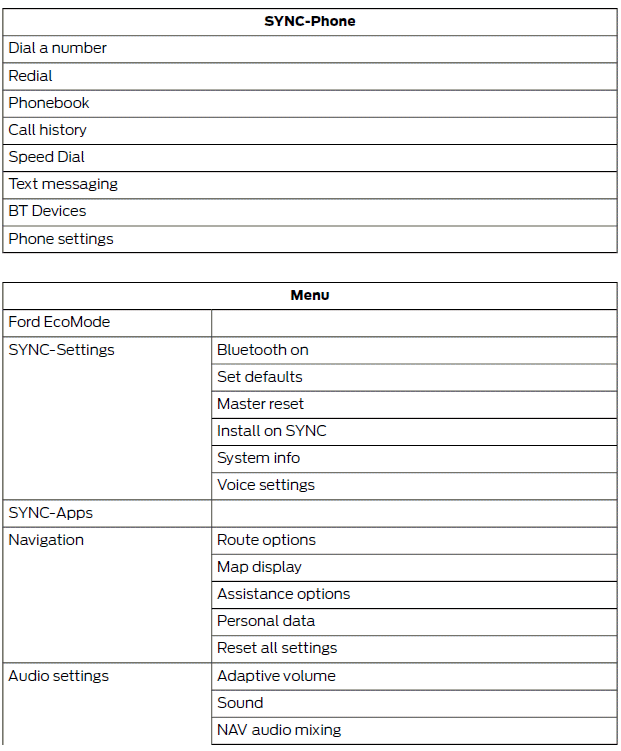

Menu Structure - Information Display

You can access the menu using the information display control.

Note: Some options may appear slightly different or not at all if the items are optional.

SYNC-Media allows you to access the SYNC features.

Ford Fiesta. General Information

Ford Fiesta. General Information

Ford Fiesta. General Information

System Check

All active warnings will display first if applicable. The system check menu may appear different based upon equipment options and current vehicle status. Press the up or down arrow button to scroll through the list.

Clock

Type 1

To adjust the clock, switch the ignition on and press buttons H or M on the information and entertainment display as necessary.

Type 2

Note: Use the information display to adjust the clock. See General Information.

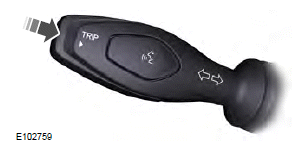

Trip Computer

Ford Fiesta. Trip Computer

Press the button to scroll through the displays.

You can reset the trip, average fuel consumption and average speed. Scroll to the required display, then press and hold the button, this will reset the trip computer.

The trip computer includes the following information displays:

Trip Odometer

Registers the distance traveled of individual journeys.

Distance to Empty

Indicates the approximate distance your vehicle will travel on the fuel remaining in the tank.

The distance to empty displayed may vary depending on driving style and road conditions.

Average Fuel Consumption

Indicates the average fuel consumption since the function was last reset.

Average Speed

Indicates the average speed calculated since the function was last reset.

Distance Odometer

Registers the total distance your vehicle has traveled.

Personalized Settings

Measure Units

To swap between imperial and metric units, scroll to this display and press the OK button.

Swapping between imperial and metric units will affect the following displays:

  • Distance to empty.
  • Average fuel consumption.
  • Instantaneous fuel consumption.
  • Average speed.

Switching Chimes Off

To switch chimes off, scroll to this display and press the OK button.

The following chimes can be switched off:

  • Warning messages.
  • Information messages.

Information Messages

Note: Depending on the options on your vehicle, not all of the messages will display or be available. Certain messages may be abbreviated or shortened depending upon which cluster type you have.

Ford Fiesta. Information Messages

Press the OK button to acknowledge and remove some messages from the information display. Other messages will be removed automatically after a short time.

Certain messages need to be confirmed before you can access the menus.

The message indicator illuminates to supplement some messages. It will be red or amber depending on the severity of the message and will remain on until the cause of the message has been rectified.

Some messages will be supplemented by a system specific symbol with a message indicator.

Airbag

Ford Fiesta. Information Messages

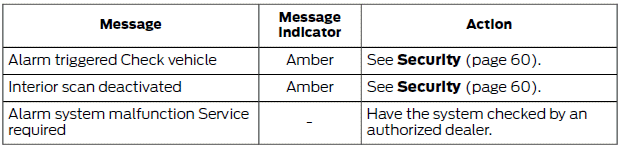

Alarm

Ford Fiesta. Information Messages

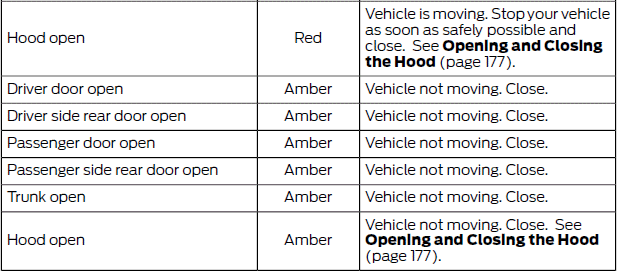

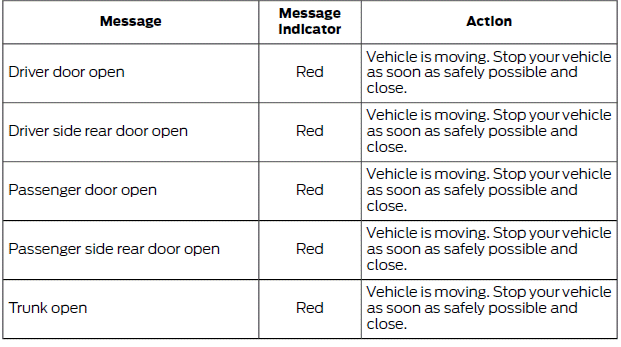

Doors Open

Ford Fiesta. Information Messages

Ford Fiesta. Information Messages

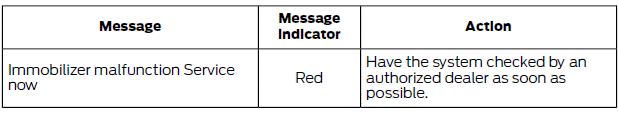

Engine Immobilizer

Ford Fiesta. Information Messages

Hill Start Assist

Ford Fiesta. Information Messages

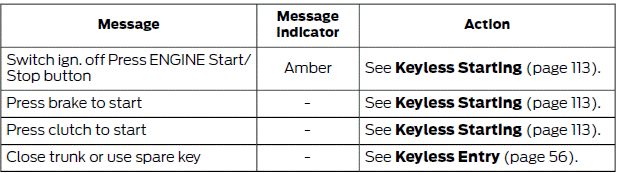

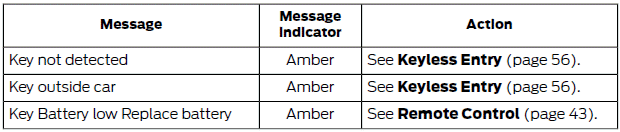

Keyless System

Ford Fiesta. Information Messages

Ford Fiesta. Information Messages

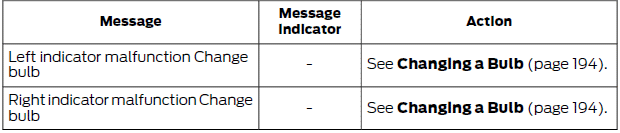

Lighting

Ford Fiesta. Information Messages

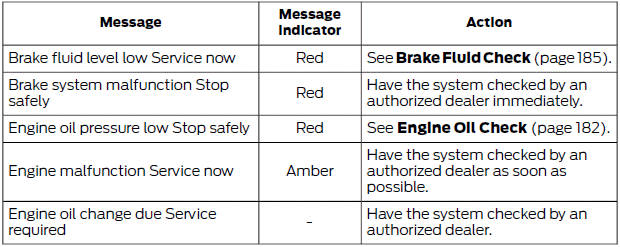

Maintenance

Ford Fiesta. Information Messages

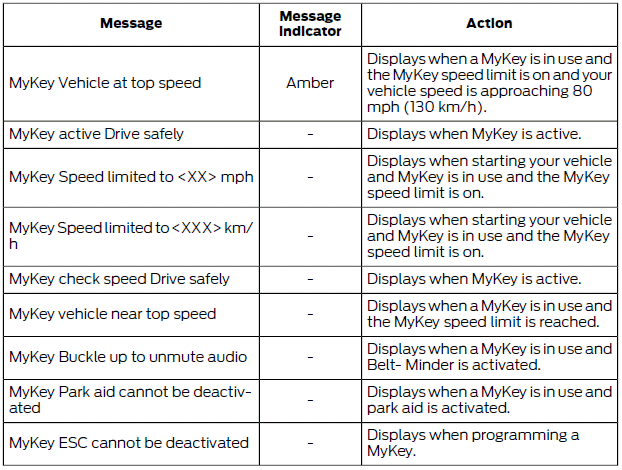

MyKey

Ford Fiesta. Information Messages

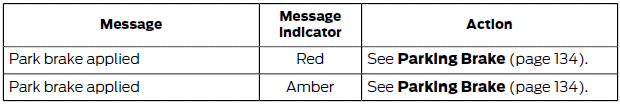

Parking Brake

Ford Fiesta. Information Messages

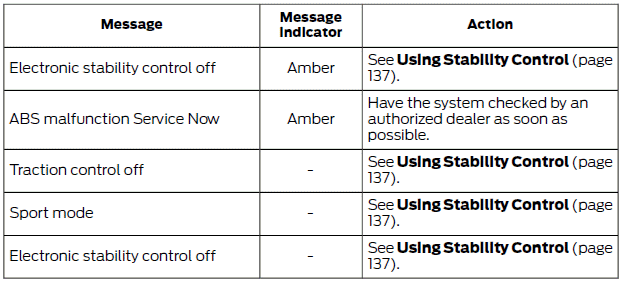

Stability Control

Ford Fiesta. Information Messages

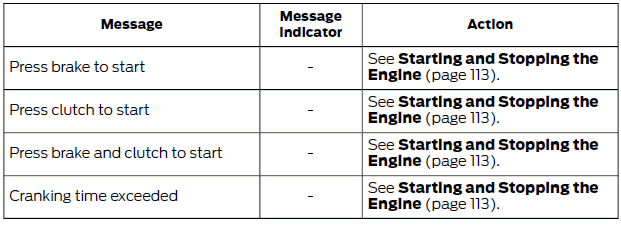

Starting and Stopping the Engine

Ford Fiesta. Information Messages

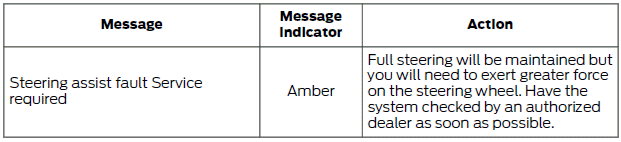

Steering

Ford Fiesta. Information Messages

Tire pressure monitoring system

Ford Fiesta. Information Messages

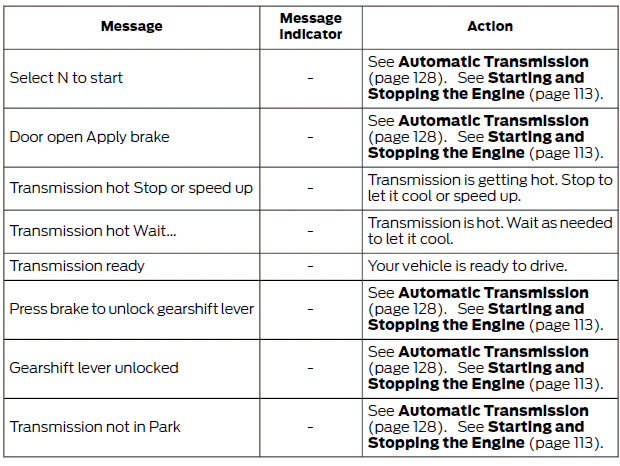

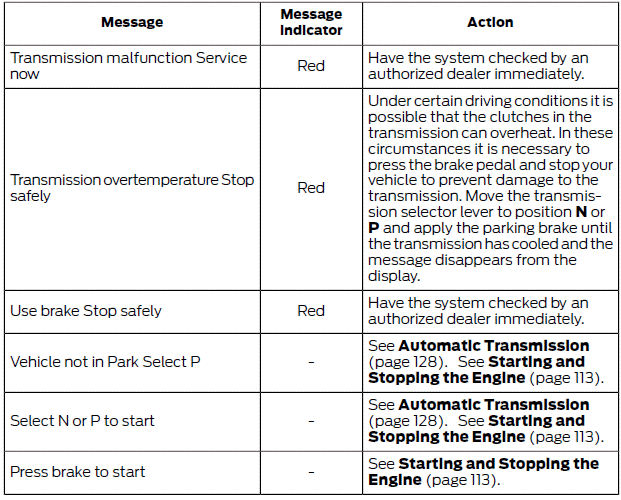

Transmission

Ford Fiesta. Information Messages

Ford Fiesta. Information Messages
