WARNING
|

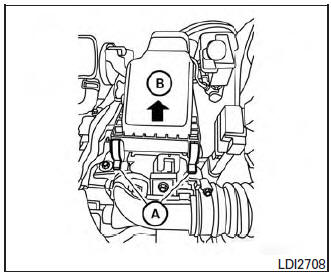

To remove the filter from the air cleaner, release the retaining clips A , then release the holders at the back of the unit. Pull the unit upward B .
The viscous paper type filter element should not be cleaned and reused. Replace the air filter according to the maintenance log shown in a separate maintenance booklet.
When replacing the air filter, wipe the inside of the air cleaner housing and the cover with a damp cloth.
AIR CONDITIONER FILTER (if so equipped)
The air conditioner filter restricts the entry of airborne dust and pollen particles and reduces some objectionable outside odors. The filter is located behind the glove box. Refer to the separate maintenance booklet for change intervals.
If replacement is required, see a NISSAN dealer or a qualified workshop.
