Nissan Micra: FM/AM radio with compact disc (CD) player (Type B) (if so equipped)

Nissan Micra Owners Manual

Nissan Micra / Nissan Micra Owners Manual / Display screen, heater, air conditioner, audio and phone systems / Audio system / FM/AM radio with compact disc (CD) player (Type B) (if so equipped)

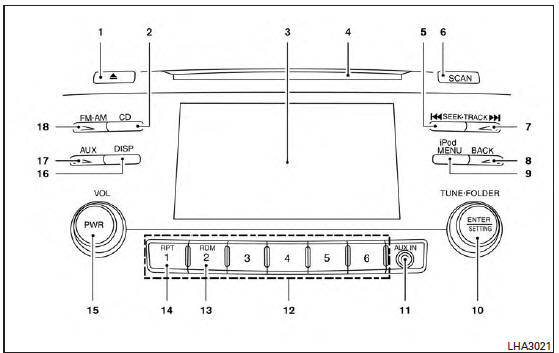

Nissan Micra. FM/AM radio with compact disc (CD) player (Type B) (if so equipped)


For additional information, refer to “Audio operation precautions” in this section.

  1. CD eject button

  2. CD button
  3. Display screen
  4. CD insert slot
  5. SEEK button

  6. SCAN button
  7. TRACK button

  8. BACK button
  9. iPod MENU button
  10. TUNE/FOLDER knob, ENTER/SETTING button
  11. AUX IN jack
  12. Station select (1 - 6) buttons
  13. RDM button
  14. RPT button
  15. VOL (volume) control knob / PWR (power) button
  16. DISP button
  17. AUX button
  18. FM•AM button

Audio main operation

VOL (volume) control knob / PWR (power) button

Place the ignition switch in the ACC or ON position and press the PWR (power) button while the system is off to call up the mode that was playing immediately before the system was turned off.

To turn the system off, press the PWR button.

Turn the VOL (volume) control knob to adjust the volume.

ENTER/SETTING button

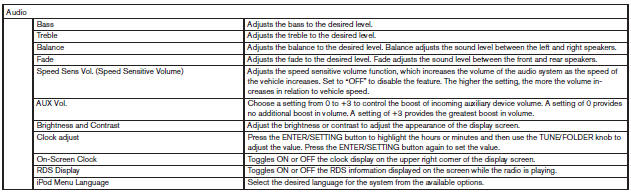

Press the ENTER/SETTING button to show the Settings screen on the display. Turn the TUNE/FOLDER knob to navigate the options and then press the ENTER/SETTING button to make a selection.

Nissan Micra. Audio main operation


Bass, treble, balance and fade can also be adjusted by pressing the ENTER/SETTING button and turning the TUNE/FOLDER control knob to select the item to adjust. When the desired item is shown on the display, turn the tuning to adjust and then press the ENTER/SETTING button until the display returns to the main audio screen. If the button is not pressed for approximately 10 seconds, the radio or CD display will automatically reappear.

iPod MENU button

This button can only be used for iPod® operations.

For additional information, refer to “iPod® player operation” in this section.

DISP (display) button

The DISP (display) button turns the display screen on or off.

BACK button

Press the BACK button to return to the previous menu screen.

FM/AM radio operation

FM·AM button

Press the FM·AM button to change the band as follows:

AM → FM1 → FM2 → AM

If another audio source is playing when the FM·AM button is pressed, the audio source playing will automatically be turned off and the last radio station played will begin playing.

TUNE/FOLDER knob (Tuning)

Turn the TUNE/FOLDER knob to the left or right for manual tuning.

SEEK tuning


Press the SEEK button or
to tune
from low to high or high to low frequencies and to stop at the next broadcasting station.

SCAN tuning

Press the SCAN button to stop at each broadcasting station for 5 seconds. SCAN will appear on the screen while the radio is scan tuning.

Pressing the button again during this 5 second period will stop SCAN tuning and the radio will remain tuned to that station. If the SCAN button is not pressed within 5 seconds, SCAN tuning moves to the next station.

1 to 6 Station memory operations

Six stations can be set for the AM band. Twelve stations can be set for the FM band (6 for FM1, 6 for FM2).

  1. Choose the radio band AM, FM1 or FM2 using the FM·AM button.
  2. Tune to the desired station using manual, SEEK or SCAN tuning. Press and hold any of the desired station memory buttons (1 – 6) until the preset number is updated on the display and a beep sound is heard.
  3. The channel indicator will then come on and the sound will resume. Programming is now complete.
  4. Other buttons can be set in the same manner.

If the battery cable is disconnected, or if the fuse opens, the radio memory will be canceled. In that case, reset the desired stations.

Compact disc (CD) player operation

If the radio is already operating, it automatically turns off and the compact disc begins to play.

CD/MP3 display mode

While listening to an MP3/WMA CD, certain text may be displayed on the screen if the CD has been encoded with text information. Depending on how the MP3/WMA CD is encoded, information such as Artist, Song and Folder will be displayed.

The track number and the total number of tracks in the current folder or on the current disc are displayed on the screen as well.

SEEK/TRACK (Reverse or
Fast Forward) button

Press and hold the SEEK/TRACK button
or for 1.5 seconds while the
compact disc is playing to reverse or fast forward the track being played. The compact disc plays at an increased speed while reversing or fast forwarding.

When the button is released, the compact disc returns to normal play speed.

SEEK/TRACK button


Press the SEEK/TRACK button
while a CD or MP3/WMA CD is playing to return to the beginning of the current track. Press the SEEK/TRACK button several times to
skip backward several tracks.

Press the SEEK/TRACK button while
a CD or MP3/WMA CD is playing to advance one track. Press the SEEK/TRACK button
several times to skip forward several tracks. If the last track on a CD is skipped, the first track on the disc is played. If the last track in a folder of an MP3/WMA CD is skipped, the first track of the next folder is played.

TUNE/FOLDER knob, ENTER/SETTING button (MP3/WMA CD only)

If a MP3/WMA CD with multiple folders is playing, turn the TUNE/FOLDER knob to change folders.

Turn the knob to the left to skip back a folder. Turn the knob to the right to skip ahead a folder.

RPT (repeat) button

When the RPT button is pressed while a compact disc is playing, the play pattern can be changed as follows:

CD:

1 Track Repeat ←→ OFF

CD with MP3 or WMA:

  • Folder Repeat → 1 Track Repeat → OFF
  • Track Repeat: the current track will be repeated.
  • Folder Repeat: the current folder will be repeated.

OFF: No repeat play pattern is applied. The indicator on the display will turn off.

The current play pattern of the CD is displayed on the screen unless no pattern is applied.

RDM (random) button

When the RDM button is pressed while a compact disc is playing, the play pattern can be changed as follows:

CD:

  • Disc Random ←→ OFF

CD with MP3 or WMA:

  • Disc Random → 1 Folder Random → OFF
  • Disc Random: all tracks on the disc will be played randomly.
  • Folder Random: all tracks in the current folder will be played randomly.

OFF: No random play pattern is applied. The indicator on the display will turn off.

The current play pattern of the CD is displayed on the screen unless no pattern is applied.

AUX button

The AUX IN jack is located on the CD player. The AUX IN audio input jack accepts any standard analog audio input such as from a portable cassette tape/CD player, MP3 player or a laptop computer.

Press the AUX button to play a compatible device plugged into the AUX IN jack. The AUX button is also used to switch the audio system to a source plugged into the USB connection port in the center console. When a device is plugged into the AUX IN jack while another device is plugged into the USB connection port, the AUX button is used to toggle between the two functions.

For additional information about the USB connection port, refer to “USB (Universal Serial Bus) connection port” in this section.

EJECT button


When the button is pressed with
a compact disc loaded, the compact disc will eject and the last source will be played.

Additional features

For additional information about the iPod® player available with this system, refer to “iPod® player operation” in this section.

For additional information about the USB interface available with this system, refer to “USB (Universal Serial Bus) connection port” in this section.

    FM/AM radio with compact disc (CD) player (Type A) (if so equipped)

    USB (Universal Serial Bus) connection port (if so equipped)
