Nissan Micra: Forward-facing child restraint installation using the seat belts

Nissan Micra Owners Manual

Nissan Micra / Nissan Micra Owners Manual / Safety—Seats, seat belts and supplemental restraint system / Child restraints / Forward-facing child restraint installation using the seat belts

WARNING The three-point seat belt with Automatic Locking Retractor (ALR) must be used when installing a child restraint. Failure to use the ALR mode will result in the child restraint not being properly secured. The restraint could tip over or be loose and cause injury to a child in a sudden stop or collision. Also, it can change the operation of the front passenger air bag. For additional information, refer to “Front passenger air bag and status light” in this section.

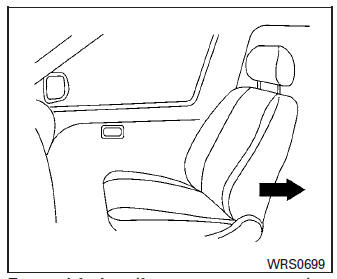

Nissan Micra. Forward-facing (front passenger seat) – step 1
Forward-facing (front passenger seat) – step 1

For additional information, refer to all Warnings and Cautions in the “Child safety” and “Child restraint” sections of this manual before installing a child restraint.

Do not use the lower anchors if the combined weight of the child and the child restraint exceeds 29.5 kg (65 lbs). If the combined weight of the child and the child restraint is greater than 29.5 kg (65 lbs), use the vehicle’s seat belt (not the lower anchors) to install the child restraint. Be sure to follow the child restraint manufacturer’s instructions for installation.

Follow these steps to install a forward-facing child restraint using the vehicle seat belt in the rear seats or in the front passenger seat:

  1. If you must install a child restraint in the front seat, it should be placed in a forward-facing direction only. Move the seat to the rearmost position. Child restraints for infants must be used in the rear-facing direction and, therefore, must not be used in the front seat.
  2. Position the child restraint on the seat. Always follow the child restraint manufacturer’s instructions.

    The back of the child restraint should be secured against the vehicle seatback.

    If necessary, adjust or remove the head restraint/headrest to obtain the correct child restraint fit. If the head restraint/headrest is removed, store it in a secure place. Be sure to reinstall the head restraint/headrest when the child restraint is removed. For additional information about head restraint/headrest adjustment, removal and installation, refer to “Head restraints/headrests” in this section.

    If the seating position does not have an adjustable head restraint/headrest and it is interfering with the proper child restraint fit, try another seating position or a different child restraint.

Nissan Micra. Forward-facing – step 3
Forward-facing – step 3

  1. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manufacturer’s instructions for belt routing.

    If the child restraint is equipped with a top tether strap, route the top tether strap and secure the tether strap to the tether anchor point. For additional information, refer to “Installing top tether strap” in this section.

    Do not install child restraints that require the use of a top tether strap in seating positions that do not have a top tether anchor.

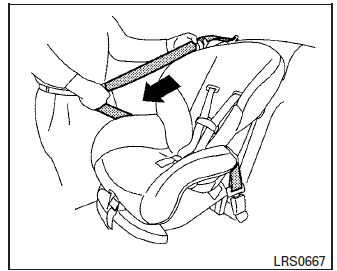

Nissan Micra. Forward-facing – step 4
Forward-facing – step 4

  1. Pull the shoulder belt until the belt is fully extended. At this time, the seat belt retractor is in the ALR mode (child restraint mode). It reverts to ELR mode when the seat belt is fully retracted.

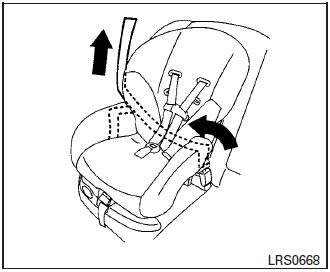

Nissan Micra. Forward-facing – step 5
Forward-facing – step 5

  1. Allow the seat belt to retract. Pull up on the shoulder belt to remove any slack in the belt.

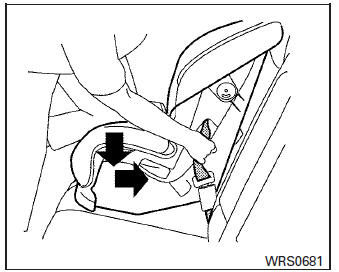

Nissan Micra. Forward-facing – step 6
Forward-facing – step 6

  1. Remove any additional slack from the seat belt; press downward and rearward firmly in the center of the child restraint with your knee to compress the vehicle seat cushion and seatback while pulling up on the seat belt.
  2. Tighten the tether strap according to the manufacturer’s instructions to remove any slack.

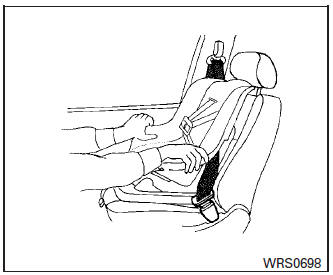

Nissan Micra. Forward-facing – step 8
Forward-facing – step 8

  1. After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the child restraint near the seat belt path. The child restraint should not move more than 25mm (1 in), from side to side. Try to tug it forward and check to see if the belt holds the restraint in place. If the restraint is not secure, tighten the seat belt as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.
  2. Check to make sure the child restraint is properly secured prior to each use. If the seat belt is not locked, repeat steps 2 through 8.

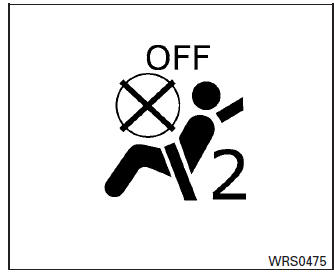

Nissan Micra. Forward-facing — step 10
Forward-facing — step 10

  1. If the child restraint is installed in the front passenger seat, place the ignition switch in the ON position. The front passenger air bag status light should illuminate.
    If this light is not illuminated, refer to “Front passenger air bag and status light” in this section.

    Move the child restraint to another seating position. Have the system checked by a NISSAN dealer.

After the child restraint is removed and the seat belt is fully retracted, the ALR mode (child restraint mode) is canceled.

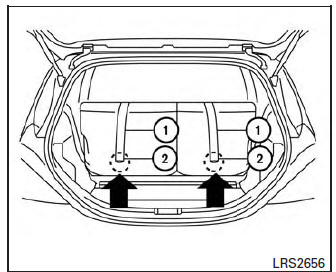

Nissan Micra. Outboard seating positions
Outboard seating positions

  1. Top tether strap
  2. Anchor point

Installing top tether strap

The child restraint top tether strap must be used when installing the child restraint with the seat belts.

First, secure the child restraint with the seat belt.

Rear bench seat

OUTBOARD SEATING POSITIONS

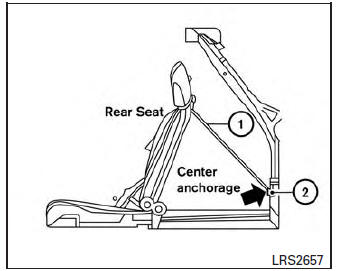

Nissan Micra. Center seating position
Center seating position

  1. Remove the head restraint/headrest and store it in a secure place. Be sure to reinstall the head restraint/headrest when the child restraint is removed. For additional information about head restraint/headrest adjustment, removal and installation, refer to “Head restraints/headrests” in this section.
  2. Position the top tether strap 1 over the seatback.
  3. Secure the tether strap to the tether anchor point 2 on the bottom of the seatback behind the child restraint.
  4. Tighten the tether strap according to the manufacturer’s instructions to remove any slack

CENTER SEATING POSITION

  1. Position the top tether strap 1 over the seatback.
  2. Secure the tether strap to the tether anchor point 2 on the rear tail panel behind the child restraint.
  3. Tighten the tether strap according to the manufacturer’s instructions to remove any slack.

If you have any questions when installing a top tether strap, consult a NISSAN dealer for details.

WARNING Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used to attach adult seat belts, or other items or equipment to the vehicle. Doing so could damage the child restraint anchorages.

The child restraint will not be properly installed using the damaged anchorage, and a child could be seriously injured or killed in a collision.

    Forward-facing child restraint installation using LATCH

    Booster seats
