Chevrolet Sonic: Engine Compartment Fuse Block
Chevrolet Sonic Owners Manual

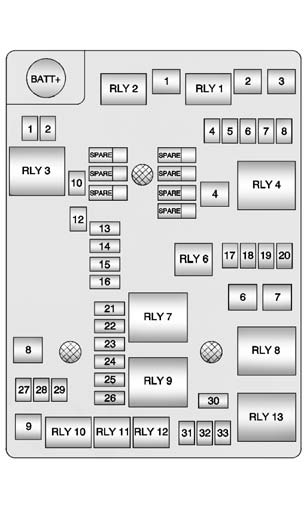

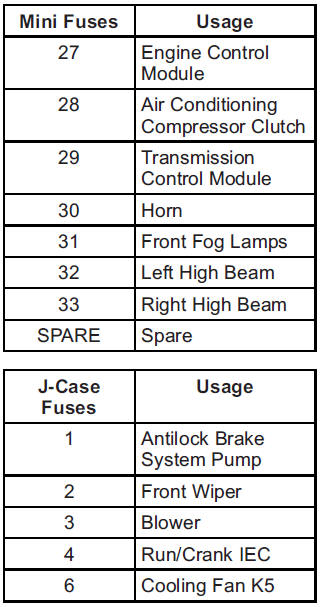

LUV and LUW Engines
The engine compartment fuse block is on the driver side of the vehicle, near the battery.
Caution
Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

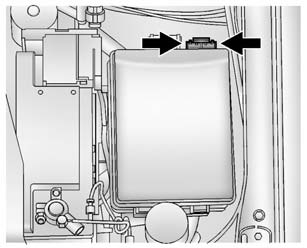

To access the fuses, press the clips together, and lift the cover. To reinstall the cover, push the cover until it is secure.

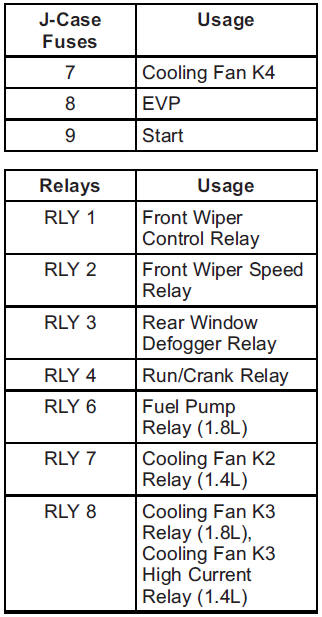

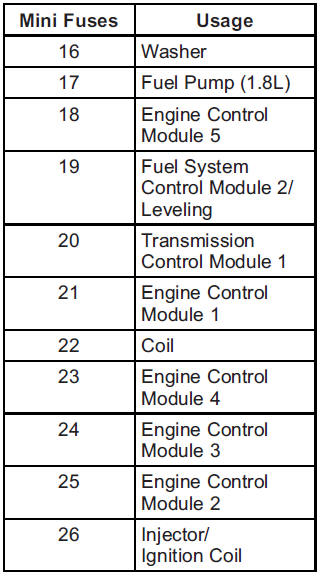

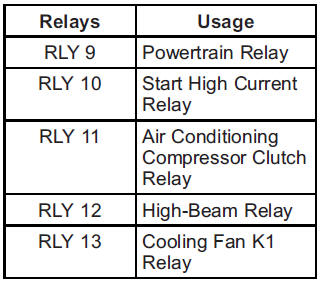

The vehicle may not be equipped with all of the fuses, relays, and features shown.

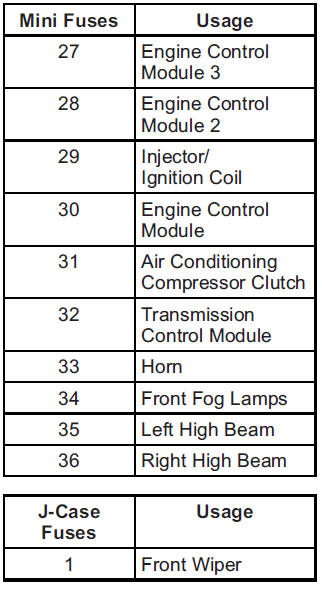

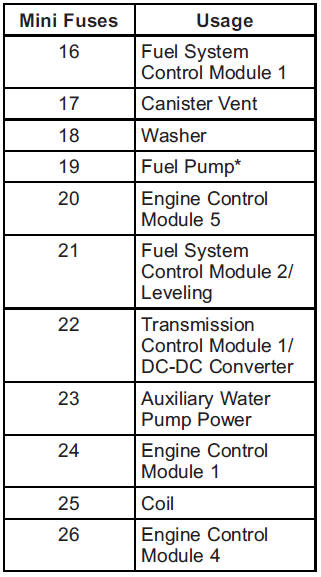

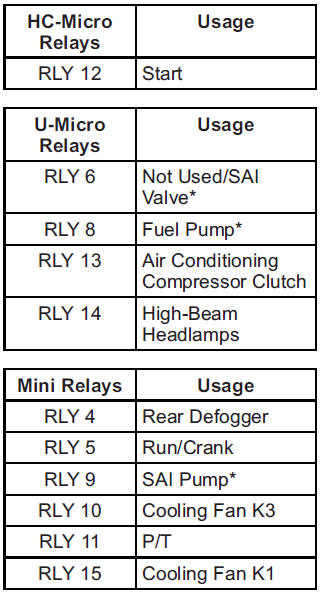

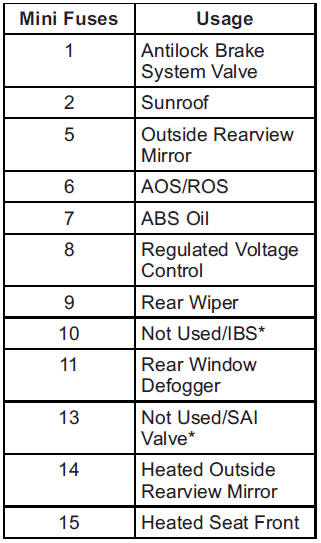

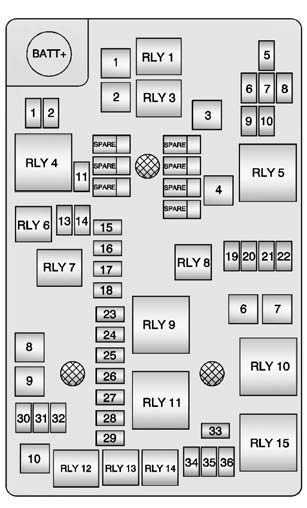

LWE Engine

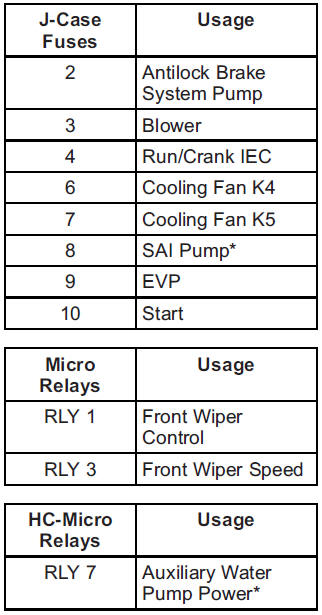

The vehicle may not be equipped with all of the fuses, relays, and features shown.
* = If equipped
