Skoda Fabia: Vehicle-specific details according to engine type

Skoda Fabia Owners Manual

Skoda Fabia / Skoda Fabia Owners Manual / Technical data / Vehicle-specific details according to engine type

The values specified have been determined in accordance with rules and under conditions set out by legal or technical requirements for determining operational and technical data for motor vehicles.

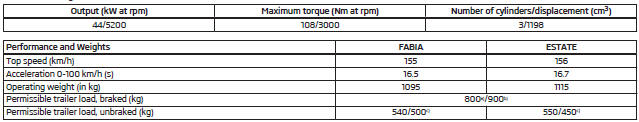

1.2 ltr./44 kW engine

1.2 ltr./44 kW engine


a) Uphills up to 12 % b) Uphills up to 8 % c) Vehicles without ABS.

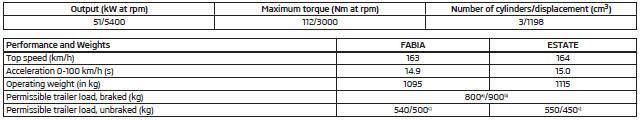

1.2 ltr./51 kW engine

1.2 ltr./51 kW engine


a) Uphills up to 12 % b) Uphills up to 8 % c) Vehicles without ABS.

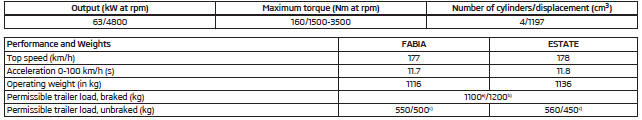

1.2 ltr./63 kW TSI engine

1.2 ltr./63 kW TSI engine


a) Uphills up to 12 % b) Uphills up to 8 % c) Vehicles without ABS.

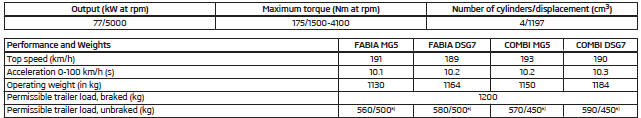

1.2 ltr./77 kW TSI engine

1.2 ltr./77 kW TSI engine


a) Vehicles without ABS.

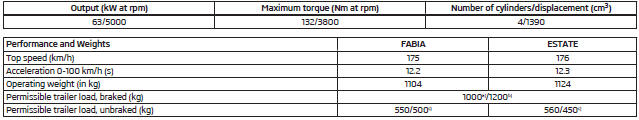

1.4 ltr./63 kW engine

1.4 ltr./63 kW engine


a) Uphills up to 12 % b) Uphills up to 8 % c) Vehicles without ABS.

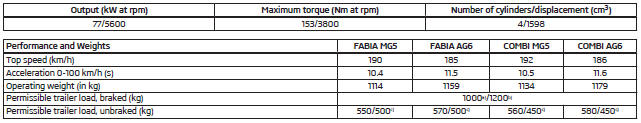

1.6 litres/77 kW engine

1.6 litres/77 kW engine


a) Uphills up to 12 % b) Uphills up to 8 % c) Vehicles without ABS.

1.4 ltr./132 kW TSI engine

1.4 ltr./132 kW TSI engine

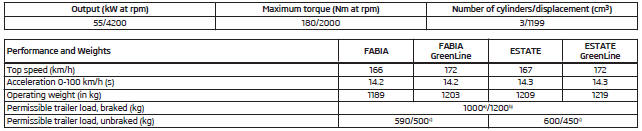

1.2 ltr./55 kW TDI CR DPF engine

1.2 ltr./55 kW TDI CR DPF engine


a) Uphills up to 12 % b) Uphills up to 8 % c) Vehicles without ABS.

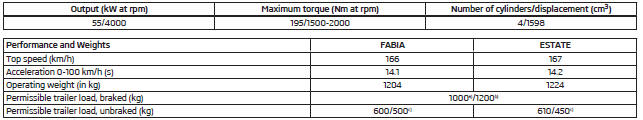

1.6 ltr./55 kW TDI CR engine

1.6 ltr./55 kW TDI CR engine


a) Uphills up to 12 % b) Uphills up to 8 % c) Vehicles without ABS.

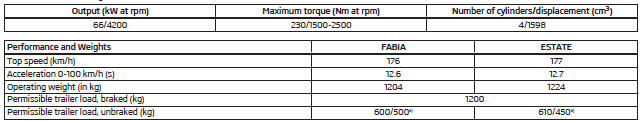

1.6 ltr./66 kW TDI CR engine

1.6 ltr./66 kW TDI CR engine


a) Vehicles without ABS.

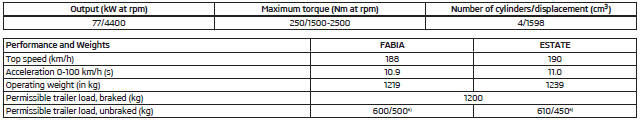

1.6 ltr./77 kW TDI CR engine

1.6 ltr./77 kW TDI CR engine


a) Vehicles without ABS.

    Measurement of fuel consumption and CO2 emissions according to ECE Regulations and EU Directives
