Chevrolet Sonic: Engine Compartment Fuse Block

Chevrolet Sonic Owners Manual

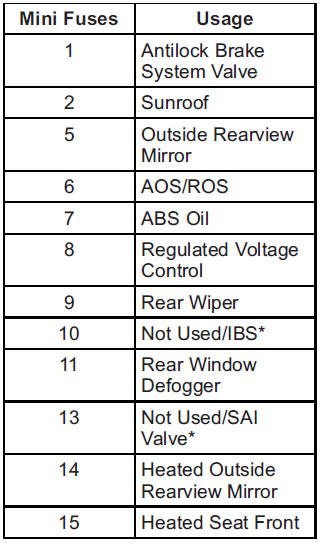

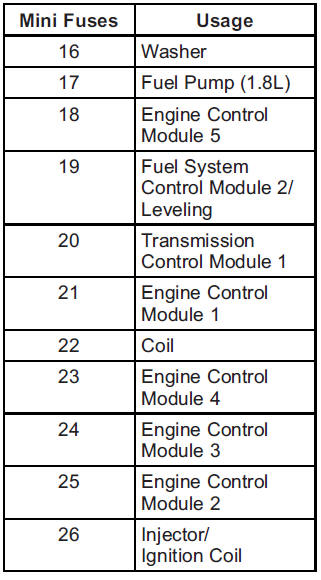

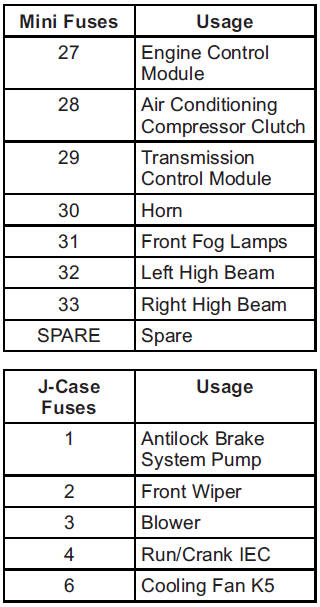

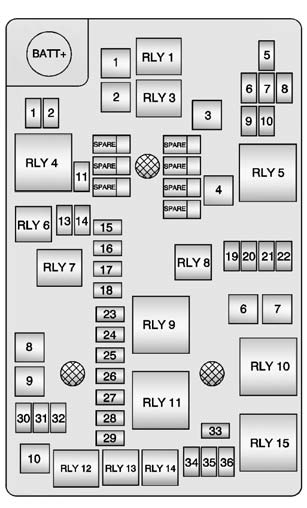

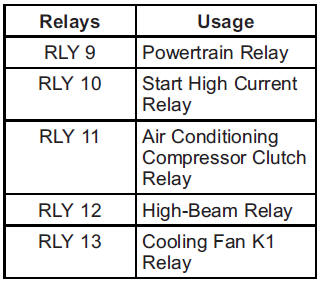

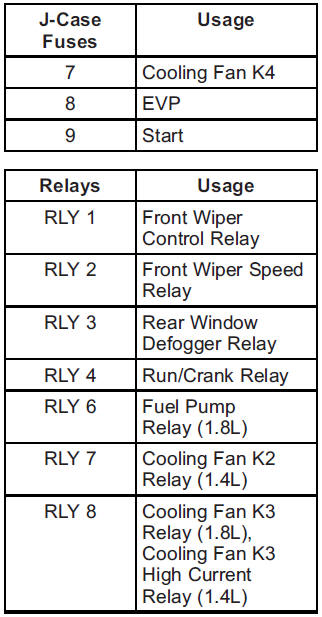

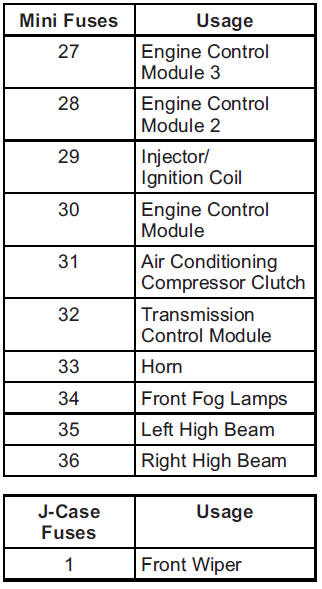

LUV and LUW Engines


The engine compartment fuse block is on the driver side of the vehicle, near the battery.

Caution

Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

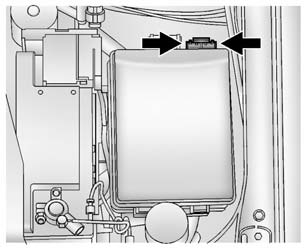

To access the fuses, press the clips together, and lift the cover. To reinstall the cover, push the cover until it is secure.


The vehicle may not be equipped with all of the fuses, relays, and features shown.

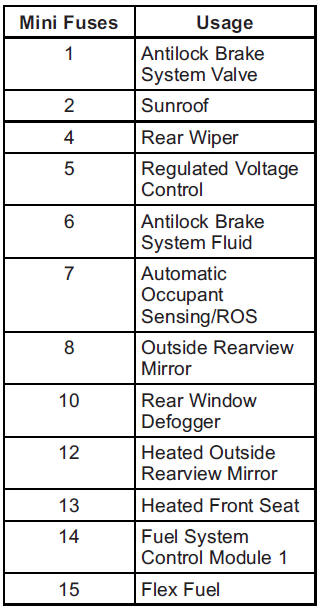

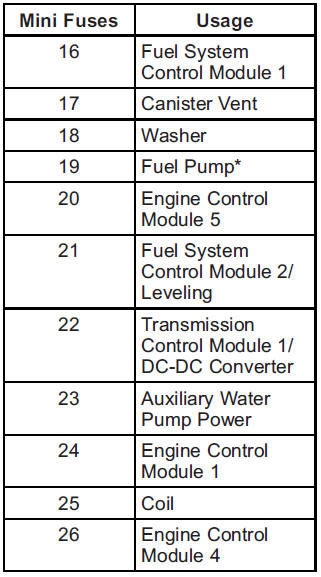

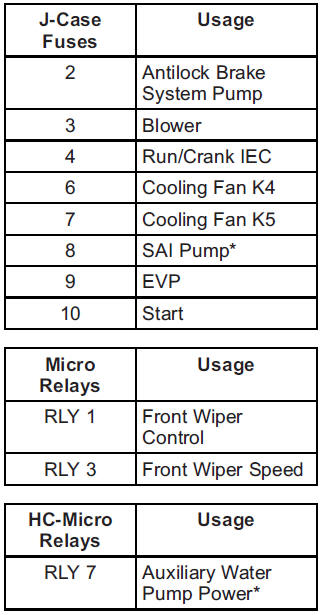

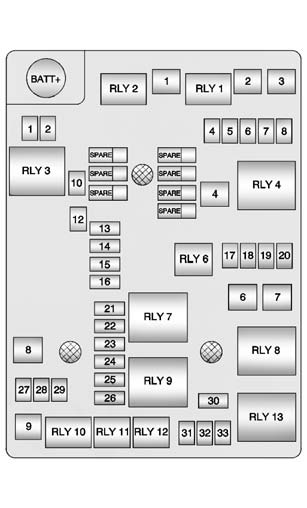

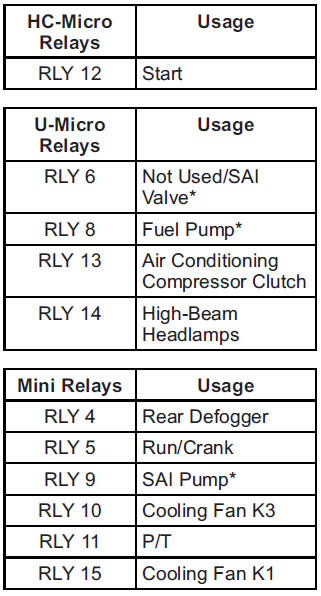

LWE Engine


The vehicle may not be equipped with all of the fuses, relays, and features shown.






* = If equipped

    Fuses and Circuit Breakers

    Instrument Panel Fuse Block
