Chevrolet Sonic: Engine Compartment Overview

Chevrolet Sonic Owners Manual

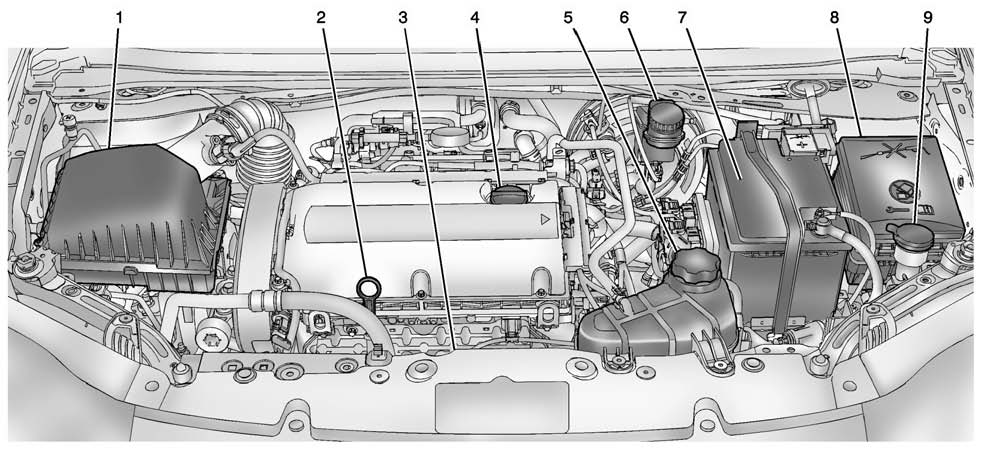

1.4L L4 Engine

1. Engine Air Cleaner/Filter.

2. Engine Oil Dipstick. See Engine Oil.

3. Engine Cooling Fan (Out of View). See Cooling System.

4. Engine Oil Fill Cap. See Engine Oil.

5. Engine Coolant Surge Tank and Pressure Cap. See Cooling System.

6. Brake/Clutch Fluid Reservoir. See Brakes  and Hydraulic Clutch.

7. Battery.

8. Windshield Washer Fluid Reservoir. See Washer Fluid.

9. Engine Compartment Fuse Block.

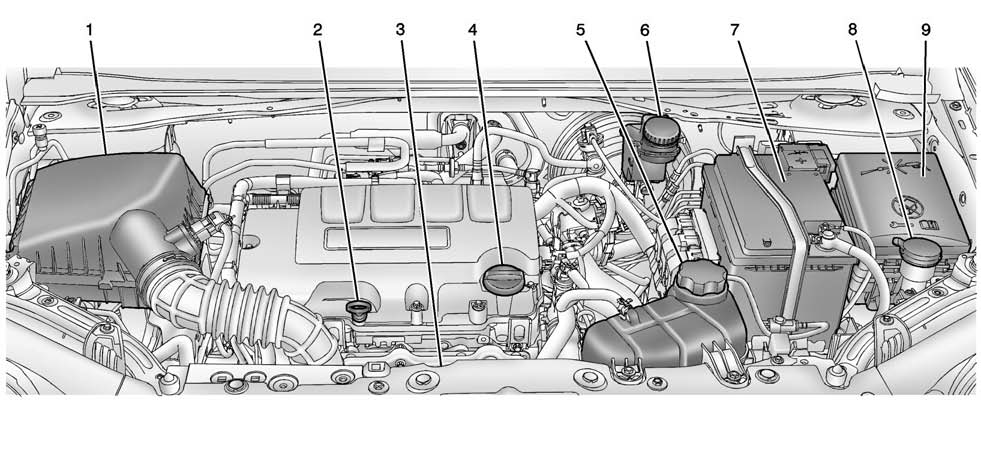

1.8L L4 Engine

1. Engine Air Cleaner/Filter.

2. Engine Oil Dipstick. See Engine Oil.

3. Engine Cooling Fan (Out of View). See Cooling System.

4. Engine Oil Fill Cap. See Engine Oil.

5. Engine Coolant Surge Tank and Pressure Cap. See Cooling System.

6. Brake/Clutch Fluid Reservoir. See Brakes  and Hydraulic Clutch.

7. Battery.

8. Engine Compartment Fuse Block.

9. Windshield Washer Fluid Reservoir. See Washer Fluid.
