Chevrolet Sonic: Rear Wiper Blade Replacement
Chevrolet Sonic Owners Manual

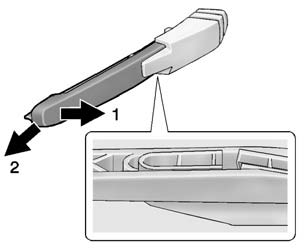

1. Pull the wiper arm a short distance away from the glass (1).
2. Pull the blade out from the arm (2).
It may require extra effort to remove the old blade.

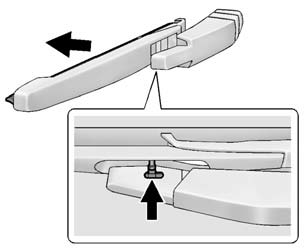

3. Once the blade pin disengages from the wiper arm, remove the wiper blade by sliding the pin out of the guide hole.
4. Reverse the steps to install the new blade.
