Chevrolet Sonic: Removing the Spare Tire and Tools
Chevrolet Sonic Owners Manual

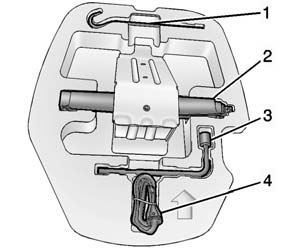

The compact spare tire and tools are located in the storage compartment in the rear of the vehicle. The jack and tools are stored below the spare tire.
1. Extension
2. Jack
3. Wheel Wrench
4. Strap
To access the spare tire and tools:
1. Open the trunk or liftgate. See Trunk (Sedan) or Liftgate (Hatchback).
2. Lift the trim cover.

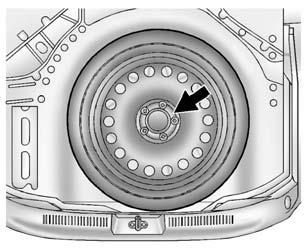

3. Turn the retainer counterclockwise and remove it from the compact spare.
4. Remove the compact spare tire. See Compact Spare Tire for more information.
5. Remove the jack and tools from their container and place them near the tire being changed.
