Chevrolet Sonic: Seat Adjustment
Chevrolet Sonic Owners Manual
Manual Seats
Warning
You can lose control of the vehicle if you try to adjust a driver seat while the vehicle is moving. Adjust the driver seat only when the vehicle is not moving.

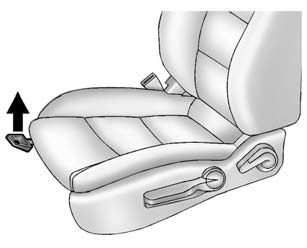

To adjust a manual seat:
1. Pull the handle at the front of the seat.
2. Slide the seat to the desired position and release the handle.
3. Try to move the seat back and forth to be sure it is locked in place.

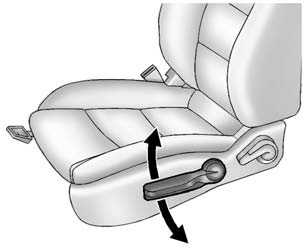

Seat Height Adjuster
If available, move the lever up or down to manually raise or lower the seat.
