Citroen C3: Front seats - Heating/ventilation - Citroen C3 Owners Manual

Citroen C3: Front seats

Citroen C3 Owners Manual

Seat consisting of a seat cushion, a seat back and a head restraint which can all be adjusted to adapt your position for ease of driving and comfort.

Manual adjustments

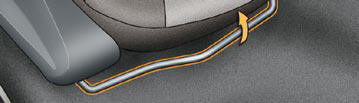

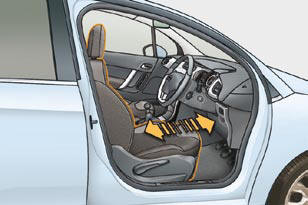

Forwards-backwards adjustment

Raise the control and slide the seat forwards or backwards.

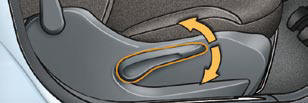

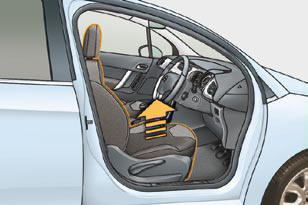

Driver's or passenger's seat height adjustment

Pull the control upwards to raise or push it downwards to lower, as many times as necessary, to obtain the position required.

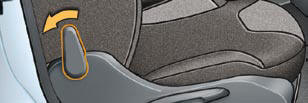

Seat back angle adjustment

Push the control rearwards.



Additional adjustments

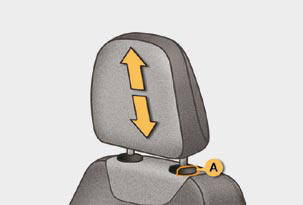

Head restraint height adjustment

  • To raise the head restraint, pull it forwards and upwards at the same time.
  • To remove the head restraint, press the lug A and pull the head restraint upwards.
  • To put the head restraint back in place, engage the head restraint stems in the openings keeping them in line with the seat back.
  • To lower the head restraint, press the lug A and the head restraint at the same time.


The head restraint is fi tted with a frame with notches which prevents it from lowering; this is a safety device in case of impact.

The adjustment is correct when the upper edge of the head restraint is level with the top of the head.

Never drive with the head restraints removed; they must be in place and adjusted correctly.
