Fiat Punto: Access to menu screen

Fiat Punto Owners Manual

After the “initial check”, it is possible to access the menu screen pressing the button .


To surf the menu press buttons + or –.

Important if after entering the menu no setting/adjustment is performed within 60 seconds, the system exits the menu automatically and returns to previously displayed screen. In this case the last selected but not confirmed setting (through button ) is not
stored and therefore the operation shall be repeated (this stands valid also when quitting the menu by pressing the button).


When the car is running, it is possible to access only the reduced menu (for setting “speed limit”).

When the car is stationary access to the whole menu is enabled.

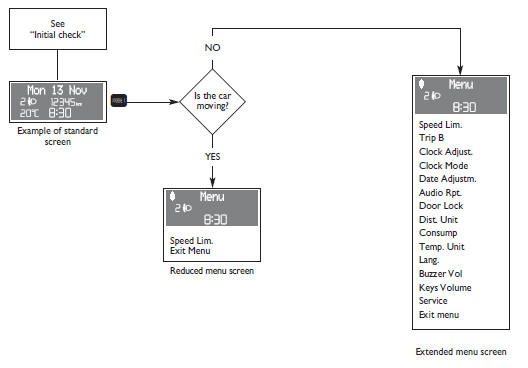

The following diagram shows the cases described.

Access to menu screen


    Menu description

    Speed limit
