Fiat Punto: Control buttons

Fiat Punto Owners Manual

To use the information the “Digital display”, “Multifunction display” and “Reconfigurable multifunction display” are able to give (with the ignition key at MAR), you should firstly familiarise with the control buttons on the right and left side of the instrument panel and on the top of the right stalk (for the “Trip computer” function) (where provided) using them as described below.

Before doing anything you are also advised to read this chapter thoroughly.

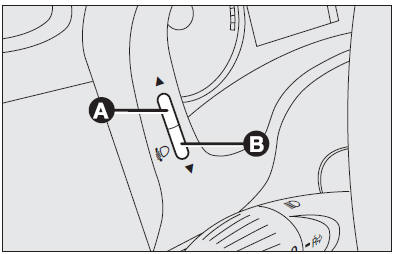

Headlight beam adjusting device

The left-hand side of the instrument panel features two buttons (A and B) for adjusting the headlight beam according to the transported load.

Buttons can be operated with ignition key at MAR and dipped beam headlights on. See paragraph "Headlights" in this section for further details.

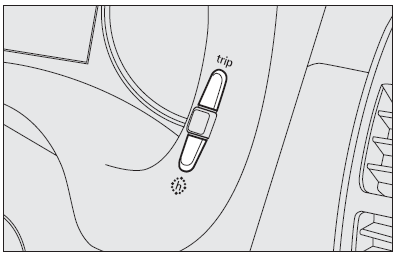

Digital display (where provided)

Trip button

To show on the display: total and trip km/miles.

Press briefly: to switch between total and trip km/miles.

Press for over 2 seconds: to reset trip km/miles.

h button

Set clock.

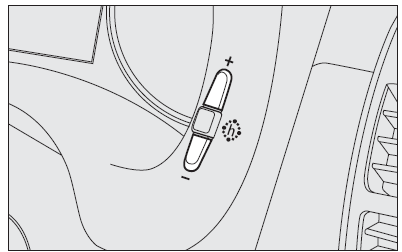

Multifunction display (where provided) +/– button

Button +: set clock (to increase minutes) Button – : set clock ( to decrease minutes)

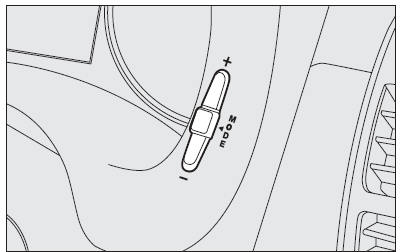

Reconfigurable multifunction display (where provided)

+/– buttons

To scroll the menu and the related options upwards/downwards or to increase/decrease the value displayed, to adjust, with sidelights turned on, the dimmer and the instrument panel and automatic two-zone climate control system (where provided) display/index (if pressed with “Set-up menu” off).

MODE button

Press for less than 2 seconds (pulse) indicated with in the following
diagrams, to confirm the option required and/or move to the main menu (same option), or access the menu.

Press for over 2 seconds, indicated with in the following diagrams, to
exit the set-up menu without confirming the selections being set.

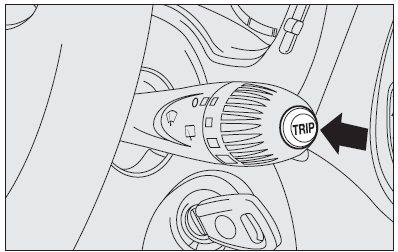

TRIP button (for multifunction display and reconfigurable multifunction display)

Press for less than 1 second (pulse) indicated with in the following
diagrams, to scroll the Trip computer display.

Press for more than 2 seconds indicated with in the following
diagrams, to reset the Trip computer and start a new mission.
