Fiat Punto: Engine codes - bodywork versions

Fiat Punto Owners Manual

Fiat Punto / Fiat Punto Owners Manual / Techniical speciifiicatiions / Engine codes - bodywork versions

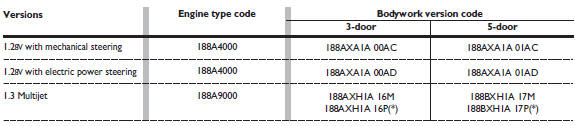

Engine codes - bodywork versions


(*) Versions with VDC

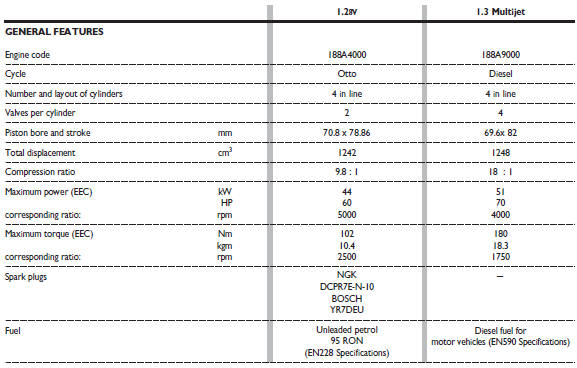

Engine

Engine


Fuel feed/ignition

Fuel feed/ignition

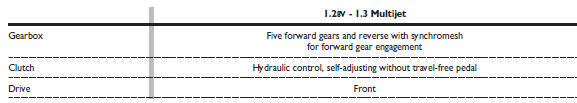

Transmission

Transmission


Modifications or repairs
to the fuel system that are not carried out properly or do not take the system’s technical specifications into account can cause malfunctions leading to the risk of fire.

Brakes

Brakes


IMPORTANT Water, ice and antifreeze salt on roads may deposit on the brake discs thus reducing braking efficiency at first braking.

Suspensions

Suspensions


Steering

Steering


    Identification data

    Wheels
