The left-hand stalk controls the external lights and the direction indicators.
The external lights can only be switched on when the ignition key is at MAR.

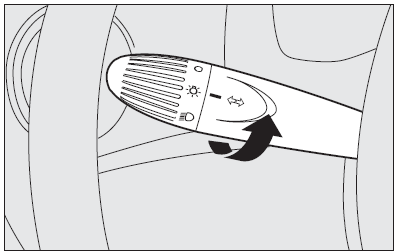

SIDELIGHTS
Turn the knurled ring to .
The warning light on the instrument
cluster will come on.
DIPPED BEAM HEADLIGHTS
Turn the knurled ring to .
The warning light on the instrument
cluster will come on.
With dipped beam and front fog lights on, turning on the main beam headlights will turn off automatically the dipped beam headlights.

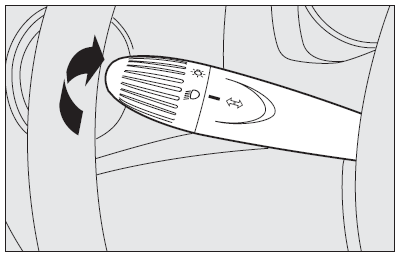

MAIN BEAM HEADLIGHTS
When the knurled ring is at push
the lever towards the dashboard
(stable position).
The warning light on the instrument
cluster will come on.
Pulling the lever towards the steering wheel again, the main beams are turned off and the dipped beams on.

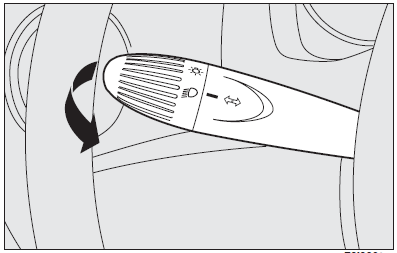

FLASHING THE HEADLIGHTS
Pull the lever towards the steering wheel (unstable position) regardless of the position of the knurled ring.
Instrument panel warning light will
turn on.

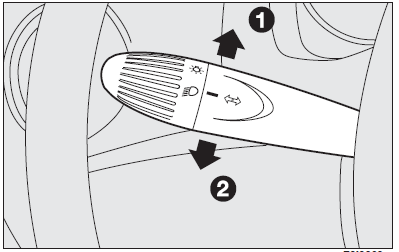

DIRECTION INDICATORS
Push the lever to stable position:
Warning light or
will come on flashing on the
instrument cluster at
the same time.
Indicators are switched off automatically when the steering wheel is straightened.
If you want the indicator to flash briefly to show that you are about to change lane, move the stalk up or down without clicking into position (unstable position). When released the stalk will return to its home position.

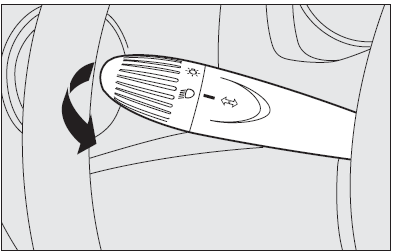

“FOLLOW ME HOME” DEVICE
This function allows the illumination of the space in front of the car.
Activation
With the ignition key at STOP or removed, pull the left-hand stalk towards the steering wheel and operate it within 2 minutes from when the engine is turned off.
At each single movement of the stalk, the staying on of the lights is extended by 30 seconds up to a maximum of 3,5minutes, then the lights are switched off automatically.
Each time the lever is operated, the instrument panel warning light 3 turns on and the display will show the function activation time.
The warning light 3will turn on the first time the stalk is operated and it will stay on until the function is automatically deactivated. Each stalk operation will just extend the staying on of the lights.
Deactivation
Keep the stalk pulled towards the steering wheel for more than 2 seconds.
