Front seat belt height adjustment


Always adjust the height of the seat belt to fit the person wearing it. This precaution could greatly reduce the risk of injury in case of collision.

Correct adjustment is obtained when the belt passes half way between the end of the shoulder and the neck.

Four different adjustments in height are provided.

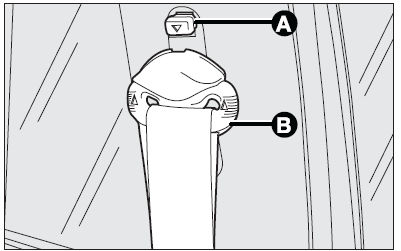

To adjust, press button (A) and lower or raise the grip (B).

Make the height
adjustment when the car is stationary.

After adjustment,
always check that the slider is anchored in one of the positions provided. To do this, with the button (A) released, exert a further pressure to allow the anchor device to catch if release did not take place at one of the preset positions.
