Fiat Punto: Fuse location

Fiat Punto Owners Manual

The fuses of the car are grouped into two fuse boxes to be found respectively on the dashboard and in the engine compartment.

Fuse box on the dashboard

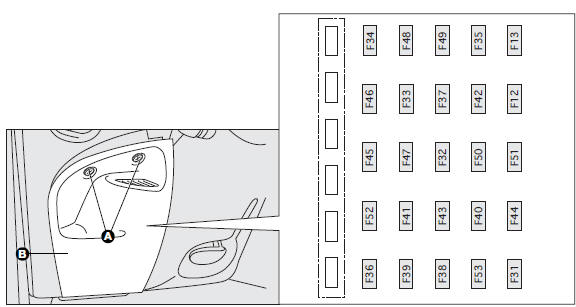

Loosen the two screws (A) and open the cover (B) to reach the fuses in the dashboard fuse box. Refer to the table on the following pages to identify the fuses.

Fuse box on the dashboard


Fuse box in the engine compartment

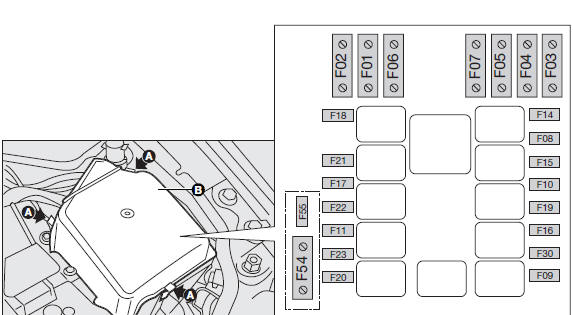

Loosen the retainers (A) and remove the cover (B). Refer to the table on the following pages to identify the fuses.

Fuse box in the engine compartment


    General

    Fuse summary table
