Fiat Punto: Fuse summary table

Fiat Punto Owners Manual

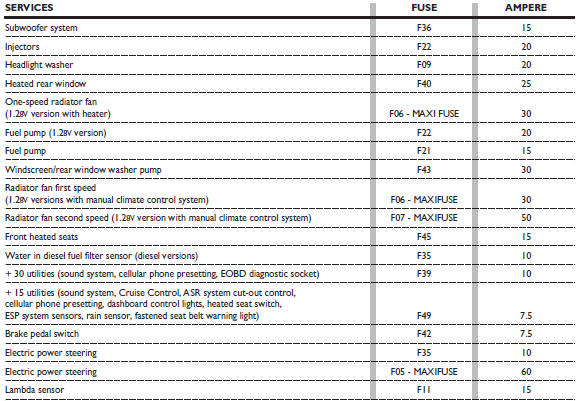

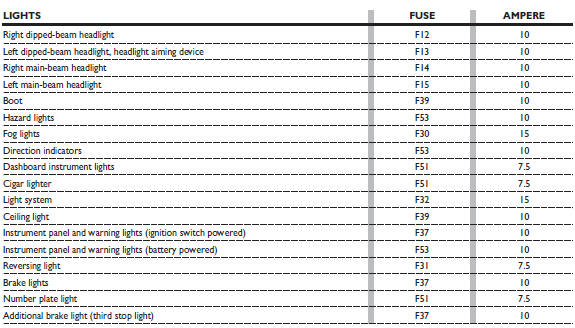

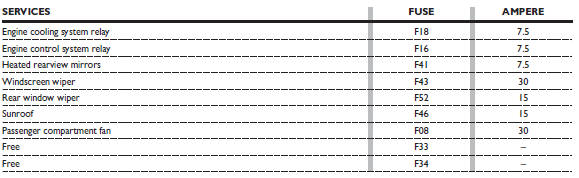

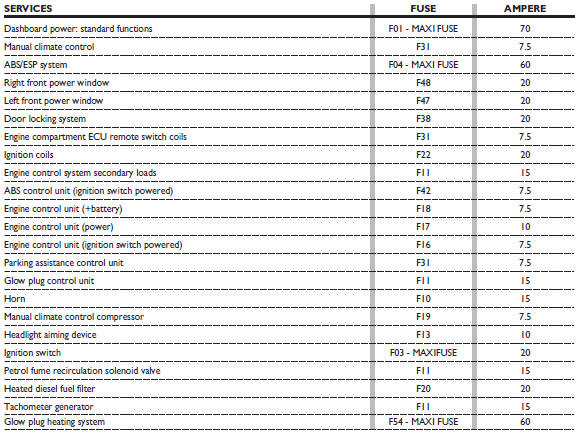

Fuse summary table


Fuse summary table


Fuse summary table


Fuse summary table


Fuse summary table


    Fuse location

    If the battery is flat
