ADJUSTING THE HEADLIGHT BEAM

Proper adjustment of the headlight beams is of vital importance for your safety and comfort and also for the other road users. It is also a specific regulation of the road traffic code. To ensure you and other drivers have the best visibility conditions when travelling with the headlights on, the headlights must be set properly.

Contact Fiat Dealership to have the headlights properly adjusted.

Check beam aiming every time the load carried changes.

Adjusting the headlight beam


HEADLIGHT SLANT ADJUSTING DEVICE

The car is fitted with electric headlight slant adjusting device working with ignition key to MAR and dipped beams on.

When the car is loaded, it slopes backwards. This means that the headlight beam rises. In this case, it is necessary to return it to the correct position.

To adjust the headlight slant, proceed as follows:

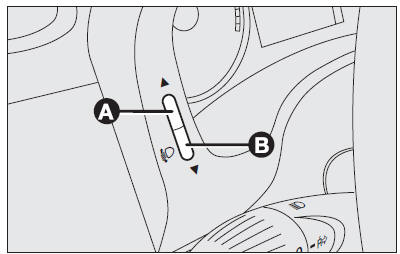

  • hold button (B) pressed to increase by one position (e.g.: 0 → 1,1 → 2,2 → 3);
  • hold button (A) pressed to decrease by one position (e.g.: 3 → 2,2 → 1,1 → 0).

Each position increase corresponds to a beam slant lowering (laden car).

Digital display
Digital display

Multifunction display
Multifunction display

Correct positions as a function of the load

Position 0 - one or two people occupying the front seats.

Position 1 - five people.

Position 2 - five people + load in the boot.

Position 3 - driver + maximum permissible load stowed in the boot.

IMPORTANT Check beam aiming every time the load carried changes.

Reconfigurable multifunction display
Reconfigurable multifunction display

HEADLIGHT ADJUSTMENT ABROAD

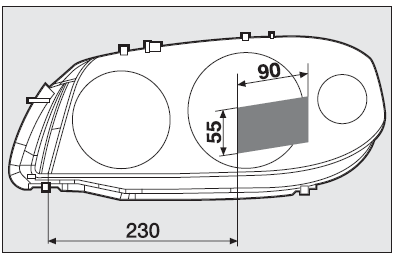

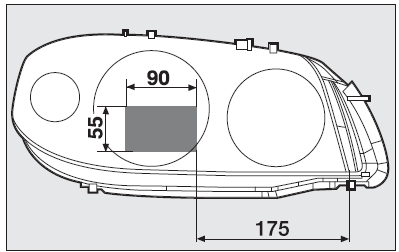

The dipped beam headlights are adjusted for circulation in the country in which the vehicle is marketed. In countries with opposite circulation, to avoid glaring oncoming vehicles it is necessary to cover the areas of the headlight as shown below; this is done using non-transparent sticker tape.

Figures refer to passing from right-hand drive to left-hand drive.

Headlight adjustment abroad


Headlight adjustment abroad
