For the type of bulb and power rating, see “When needing to change a bulb”.

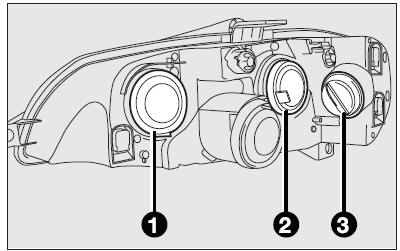

FRONT LIGHT UNITS
The front light units contain: sidelights, dipped beam, main beam and direction indicator bulbs.
The bulbs are arranged inside the light unit as follows:
IMPORTANT After replacement, refit the covers correctly checking that they are properly secured.

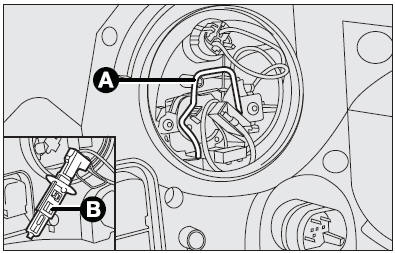

MAIN BEAM HEADLIGHTS
To change the bulb, remove the protective cover (1), release the catch (A) and remove the bulb (B).

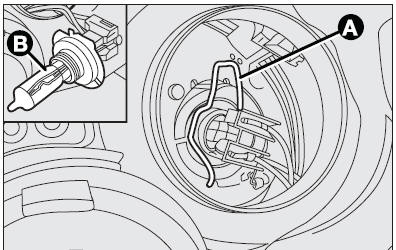

DIPPED BEAM HEADLIGHTS
To change the bulb, remove the protective cover (2), release the catch (A) and remove the bulb (B).

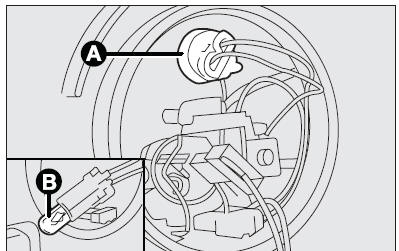

FRONT SIDELIGHTS
To change the bulb, remove the protective cover (1), remove connector (A) and remove the bulb (B).

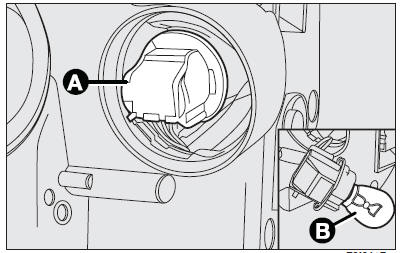

DIRECTION INDICATORS
Front
To change the bulb, remove the protective cover (3), turn connector (A) clockwise and remove the bulb (B).

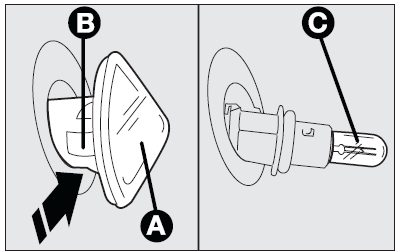

Side
To change the bulb, proceed as follows:

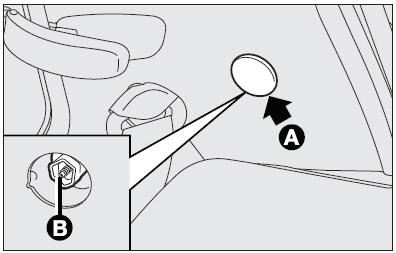

FRONT FOG LIGHTS
Go to a Fiat Dealership to have bulbs replaced.

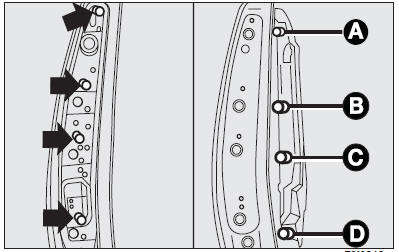

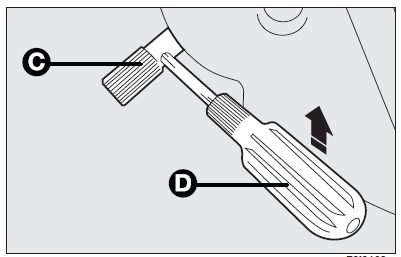

REAR LIGHT UNIT
To change the bulb, proceed as follows:
The bulbs are arranged inside the light unit as follows:

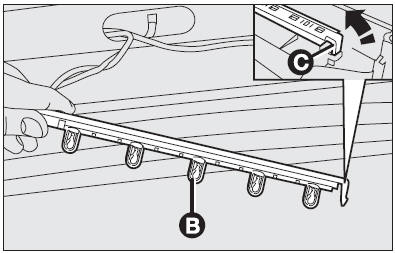

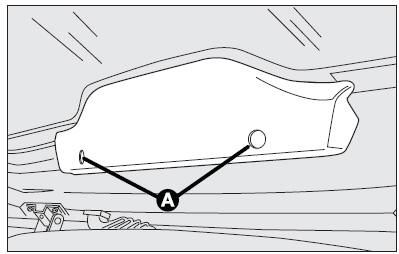

ADDITIONAL BRAKING LIGHT (THIRD STOP)
To change the bulb, proceed as follows:

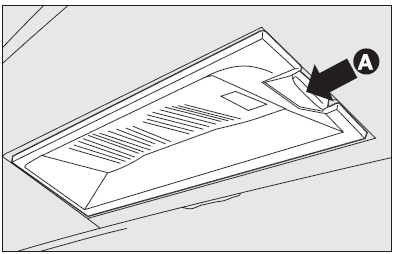

NUMBER PLATE LIGHT
To change the bulb, proceed as follows:
