Fiat Punto: Jacking the car
Fiat Punto Owners Manual
WITH THE JACK
See “If a tyre is punctured” in this section.
WITH A SHOP JACK
From the front
Jack up the car only by positioning the jack arm at the gearbox/differential and placing a rubber pad in between as shown in the figure.

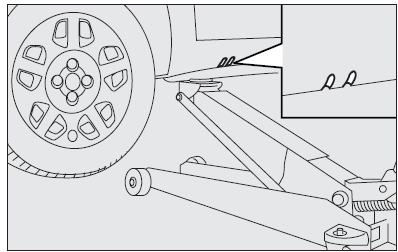

From the side
The car can only be jacked up by positioning the arm at the reference points in the area shown in the figure. Place a piece of rubber of suitable thickness in between.

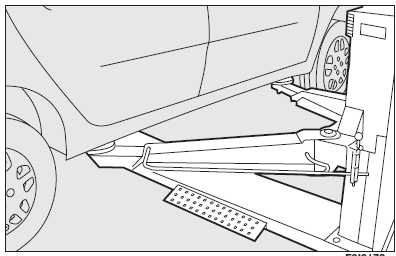

WITH AN ARM HOIST
Jack up the car by arranging the ends of the arms in the areas shown in the figure.
