Fiat Punto: Restoring the use of the rear seat

Fiat Punto Owners Manual

Fiat Punto / Fiat Punto Owners Manual / Dashboard and controls / Boot / Restoring the use of the rear seat

Versions with single seat

Perform operations in a reverse order with respect to what previously described for the boot extension operation. To prevent buckles from remaining positioned below the cushion, check whether the buckles are always coupled to the respective tongues located on the seat back.

Restoring the use of the rear seat


Versions with split seat

Perform operations in a reverse order with respect to what previously described for the boot extension operation. To prevent buckles from remaining positioned below the cushion, couple buckles to the respective side belt branches.

For versions with lap belt, couple the belt to its buckle and keep it raised as the cushion is set back to its normal use position.

For versions with central three-point belt with reel, set the belt back to use conditions (see previous pages), paying attention that the buckles are ready for use.

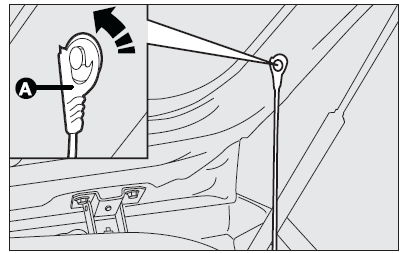

When refitting the
parcel shelf, fasten the two side tie-rods (A) passing them on the inside of the struts.
    Rear window shelf removal

    Bonnet
