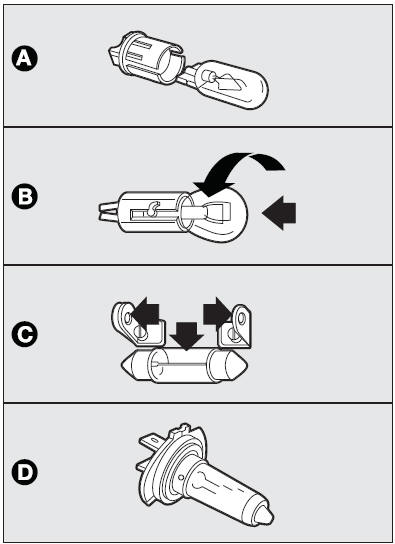

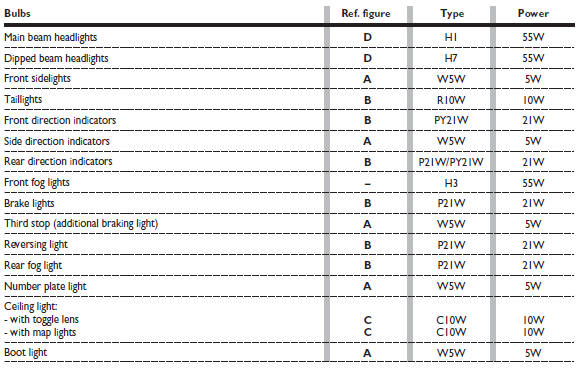

Various types of bulbs are fitted to your car:
- All glass bulbs: these are pressed on. Pull to remove.
- Bayonet type bulbs: press the bulb, and turn counterclockwise to remove this type of bulb from its holder.
- Tubular bulbs: free them from their contacts to remove.
- Halogen bulbs: to remove, free it from the clip on its housing.
