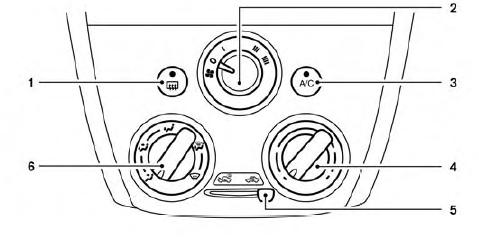

Fan control dial
The fan control dial turns the fan on and off and controls fan speed.
Air flow control dial
The air flow control dial allows you to select the air flow outlets.
Temperature control dial
The temperature control dial allows you to adjust the temperature of the outlet air. To lower the temperature, turn the dial to the left. To increase the temperature, turn the dial to the right.
Fresh air
Move the air intake lever to the position.
The air flow is drawn from outside the vehicle.
Air recirculation
Move the air intake lever to the
position to
recirculate air inside the vehicle.
Use the selection:
Air conditioner button
Start the engine, turn the fan control dial to the
desired position and press the
button to
turn on the air conditioner. The indicator light
comes on when the air conditioner is operating.
To turn off the air conditioner, press the
button again.
The air conditioner cooling function operates only when the engine is running.
Rear window and outside mirror (if so equipped) defroster switch
For additional information, refer to “Rear window and outside mirror (if so equipped) defroster switch” in the “Instruments and controls” section of this manual
