Nissan Micra. Fuel gauge

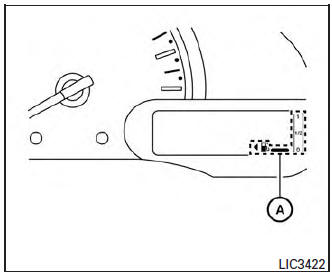

The gauge indicates A the approximate fuel level in the tank when the ignition switch is placed in the ON position.

When one segment remains on the digital fuel gauge, only one segment will blink. When no segments remain on the digital fuel gauge, the fuel gauge symbol and the scale will blink.

Refill the fuel tank before the gauge registers 0 (Empty).

The indicates that the fuel-filler
door is located on the driver’s side of the vehicle.

CAUTION

If the vehicle runs out of fuel, the
check engine light may come on. Refuel as soon as possible. After a few driving trips, the light should
turn off. If the light remains on after a few driving trips, have the vehicle inspected by a NISSAN dealer.
For additional information, refer to “Malfunction Indicator Light (MIL)” in this section.
