WARNING
Always take all children and pets with you or leave a responsible person with them: Leaving a child or a pet unattended in a parked vehicle is dangerous. In hot weather, temperatures inside a vehicle can become high enough to cause brain damage or even death.
Do not leave the key in your vehicle with children and keep them in a place where your children will not fi nd or play with them: Leaving children in a vehicle with the key is dangerous. This could result in someone being badly injured or even killed.
Always close all the windows, lock the doors and take the key with you when leaving your vehicle unattended: Leaving your vehicle unlocked is dangerous as children could lock themselves in a hot vehicle, which could result in death. Also, a vehicle left unlocked becomes an easy target for thieves and intruders.
WARNING
After closing the doors, always verify that they are securely closed: Doors not securely closed are dangerous, if the vehicle is driven with a door not securely closed, the door could open unexpectedly resulting in an accident.
Always confi rm the safety around the vehicle before opening a door: Suddenly opening a door is dangerous.
A passing vehicle or a pedestrian could be hit and cause an accident.
NOTE
(European models) All doors and the liftgate/boot lid will automatically unlock if they are locked using the power door locks with any door open.
If all the doors are closed even though the liftgate/boot lid is open, all the doors will lock.
(Except European models) All doors and the liftgate/boot lid will automatically unlock if they are locked using the power door locks with any door or the liftgate open.
The doors may not unlock depending on how an impact is applied, the force of the impact, and other conditions of the accident.
If door-related systems or the battery is malfunctioning, the doors will not unlock.

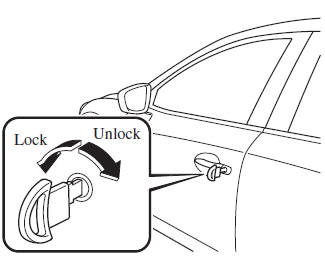

Locking, Unlocking with Key
All doors and the liftgate/boot lid lock automatically when the driver's door is locked using the key. They all unlock when the driver's door is unlocked using the key.
Turn the key toward the front to lock, toward the back to unlock.
Double Locking System *
The double locking system is designed to prevent someone who has broken into your vehicle from opening the door from the inside.
If you have any problems with the double locking system, consult an expert repairer, we recommend an Authorised Mazda Repairer.
WARNING
Never activate the double locking system with passengers, especially children, still inside the vehicle: Activating the system with passengers, especially children, still inside the vehicle is dangerous. The passengers cannot open the doors from inside.
They would be trapped and subjected to extreme temperatures. This could result in serious injuries or even death.
How to Activate the system
NOTE
NOTE
The system cannot be activated when any door or the liftgate is open.
How to Deactivate the System
Unlock the driver's door or switch the ignition ON.
NOTE
If the power supply is interrupted (fuse blows or the battery is disconnected), the system can only be deactivated by unlocking a door with the key.

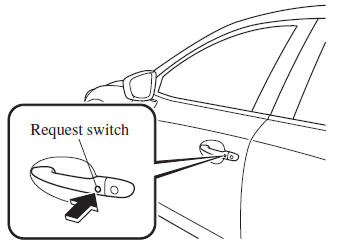

Locking, Unlocking with Request Switch (With the advanced keyless function)
All doors and the liftgate/boot lid can be locked/unlocked by pressing the request switch while the key is being carried.
To lock
To lock the doors and the liftgate/boot lid, press the request switch and the hazard warning lights will fl ash once.
(Except European models) A beep sound will be heard once.
To unlock
To unlock the doors and the liftgate/boot lid, press the request switch and the hazard warning lights will fl ash twice.
(Except European models) A beep sound will be heard twice.
NOTE
For the liftgate/boot lid, move it without pressing the electric liftgate/ boot lid opener to verify that the liftgate/boot lid has not been left ajar.
(Except European models) All doors and the liftgate/boot lid cannot be locked when any door or the liftgate is open.
(Except European models) A beep sound is heard for confi rmation when the doors and the liftgate/boot lid are locked/unlocked using the request switch. If you prefer, the beep sound can be turned off.
The volume of the beep sound can also be changed. Refer to Personalisation Features on page 9-13 .
NOTE
Use the following procedure to change the setting.
All of the doors and the liftgate/ boot lid lock and the beep sound activates at the currently set volume. (If the beep sound is currently set to not activate, it will not activate.) The setting changes each time the LOCK button on the key is pressed and the beep sound activates at the set volume. (If the beep sound has been set to not activate, it will not activate.)
(With theft-deterrent system) The hazard warning lights fl ash when the theft-deterrent system is armed or turned off.
Refer to Theft-Deterrent System on page 3-44 .
(With double locking system) Pressing the request switch twice within 3 seconds will activate the double locking system.
Refer to Double Locking System on page 3-12 .
The setting can be changed so that the doors and the liftgate/boot lid are locked automatically without pressing the request switch.
Refer to Personalisation Features on page 9-13 .
(Auto-lock function) A beep sound is heard when all doors and the liftgate are closed while the advanced key is being carried. All doors and the liftgate/ boot lid are locked automatically after about three seconds when the advanced key is out of the operational range. Also, the hazard warning lights fl ash once. (Even if the driver is in the operational range, all doors and the liftgate/boot lid are locked automatically after about 30 seconds.) If you are out of the operational range before the doors and the liftgate/boot lid are completely closed or another key is left in the vehicle, the auto-lock function will not work. Always make sure that all doors and the liftgate/ boot lid are closed and locked before leaving the vehicle. The auto-lock function does not close the power windows.
NOTE
After unlocking with the request switch, all doors and the liftgate/boot lid will automatically lock if any of the following operations are not performed within about 30 seconds.
If your vehicle has a theft-deterrent system, the hazard warning lights will fl ash for confi rmation.
The time required for the doors to lock automatically can be changed.
Refer to Personalisation Features on page 9-13 .
Locking, Unlocking with Transmitter
All doors and the liftgate/boot lid can be locked/unlocked by operating the keyless entry system transmitter, refer to Keyless Entry System (page 3-3 ).

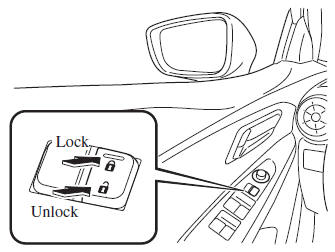

Locking, Unlocking with Door- Lock Switch *
All doors and the liftgate/boot lid lock automatically when the lock side is pressed with all doors and the liftgate closed.
They all unlock when the unlock side is pressed.
NOTE
The doors and the liftgate/boot lid cannot be locked while any other door or the liftgate is open.
Auto Lock/Unlock Function *
WARNING
(With door-lock switch) Do not pull the inner handle on the driver's door: Pulling the inner handle on the door while the vehicle is moving is dangerous. The driver can fall out of the vehicle if the door opens accidentally , which could result in death or serious injury.
(Without door-lock switch) Do not pull the inner handle on a front door: Pulling the inner handle on a front door while the vehicle is moving is dangerous. Passengers can fall out of the vehicle if the door opens accidentally , which could result in death or serious injury.
These functions can also be disabled so that they do not operate.
Auto lock/unlock function setting change using door-lock switch (With door-lock switch)
The doors and the liftgate/boot lid can set to lock or unlock automatically by selecting any one of the functions from the following table and using the door-lock switch on the interior door panel.
NOTE
Be sure to press the unlock side of the driver's door-lock switch the correct number of times according to the selected function number. If the switch is mistakenly pressed seven times on an automatic transaxle vehicle or four times on a manual transaxle, the procedure will be cancelled. If this occurs, start the procedure from the beginning.
Function number | Function *1 |
1 | The auto door-lock function is disabled. |
2 | All the doors and the liftgate/boot lid lock automatically when the vehicle speed is about 20 km/h (12 mph) or more. |
3 | All the doors and the liftgate/boot lid lock automatically when the vehicle speed is about 20 km/h (12 mph) or more. All the doors and theliftgate/ boot lid unlock when the ignition is switched from ON to Off. |
4 | (Automatic transaxle vehicles only) When the ignition is switched ON and the shift lever is shifted from park (P) to any other gear position, all the doors and the liftgate/boot lid lock automatically. |
5 | (Automatic transaxle vehicles only)
When the ignition is switched ON
and the shift lever is shifted from park
(P) to any other gear position, all the
doors and the liftgate/boot lid lock
automatically.
When the shift lever is shifted to park (P) while the ignition is switched ON, all the doorsliftgate/boot lid unlock automatically. |
6 | (Automatic transaxle vehicles only)
All the doors and the liftgate/boot lid
lock automatically when the vehicle
speed is about 20 km/h (12 mph) or
more.
When the shift lever is shifted to park (P) while the ignition is switched ON, all the doors liftgate/boot lid unlock automatically. |
*1 Other settings for the auto door lock function are available at an expert repairer, we recommend an Authorised Mazda Repairer. For details consult an expert repairer, we recommend an Authorised Mazda Repairer. Refer to Personalisation Features on page 9-13 .
Settings can be changed using the following procedure.

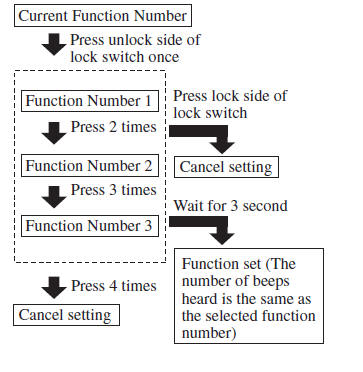

Manual transaxle vehicles

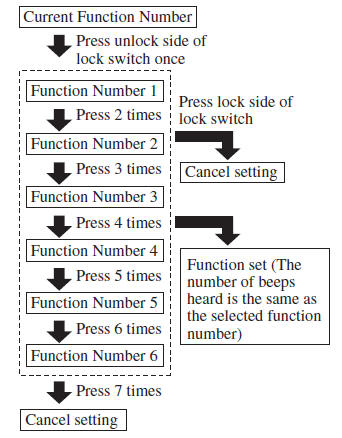

Automatic transaxle vehicles
NOTE
Locking, Unlocking with Door- Lock Knob

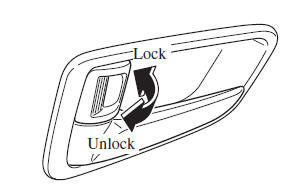

Operation from inside
(With door-lock switch) To lock any door from the inside, press the door-lock knob.
To unlock, pull it outward.
This does not operate the other door locks.
(Without door-lock switch) All doors and the liftgate/boot lid lock automatically when the driver's door-lock knob is pressed. They all unlock when the driver's door-lock knob is pulled out.
NOTE
The red indication can be seen when the door-lock knob is unlocked.

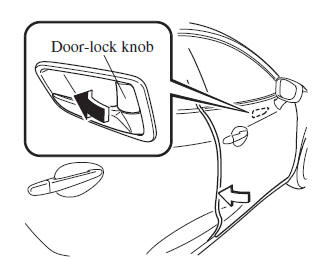

Operation from outside
To lock the rear and front passenger doors with the door-lock knob from the outside, press the door-lock knob to the lock position and close the door (holding the door handle in the open position is not required).
This does not operate the other door locks.
NOTE
When locking the door this way:

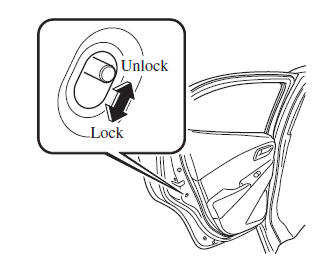

Rear Door Child Safety Locks
These locks are intended to help prevent children from accidentally opening the rear doors. Use them on both rear doors whenever a child rides in the rear seat of the vehicle.
If you slide the child safety lock to the lock position before closing that door, the door cannot be opened from the inside.
The door can only be opened by pulling the outside handle.
