The wipers are controlled directly by the driver.

Model without AUTO wiping

Model with AUTO wiping
Windscreen wipers

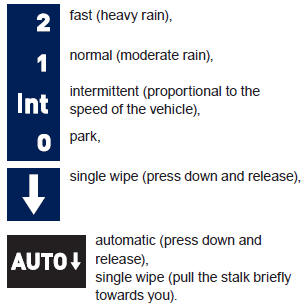

Wiping speed:


Rear wiper
Rear wiper selection ring:
park,
intermittent wipe,
wash-wipe (set duration).
If a significant accumulation of snow or ice is present, or when using a bicycle carrier on the boot, deactivate the automatic rear wiper via the vehicle configuration menu.
Reverse gear
When reverse gear is engaged, the rear wiper will come into operation if the windscreen wipers are operating.
Programming

The function is activated or deactivated via the vehicle configuration menu. This function is activated by default.
Windscreen wash
Pull the wiper stalk towards you. The windscreen wash, then the windscreen wipers, operate for a pre-determined time.
